Conventional machining centre and High Tech CNC

SIECO has two fabrication units with modern machines & equipment with a hi-tech CNC & Conventional machining centre. The units are equipped with a number of lathes, shaping machines, bench grinding machines, drilling machines, rolling machines, power hacksaw etc.

CNC machining centre is established in a built-up area of 15,000 Sq.ft, connected with 140 HP KEB Power and 200 KVA Captive Power Generator with a 10 Ton EOT crane facility for material handling.


  • CNC machining and assembly facilities

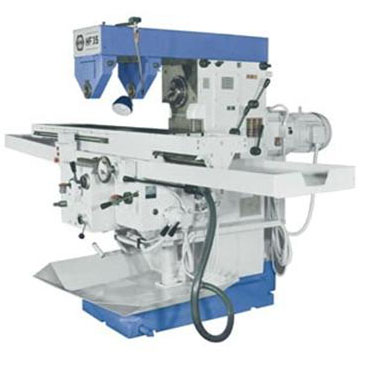

        BFW HORIZONTAL MILLING MACHINE

        Model HF - 2.0

        Features

      • Rigid Structure: The rigid spindle housing, cross ribbed box type column structure, and the closed box type knee design ensure optimum chip removal and surface finish. The rigid structure ensures vibration free and smooth machining.
      • Work Spindle: Optimum spacing of precision taper roller bearings ensure vibration free cutting. The bearing preload is adjusted by a common nut.
      • The table, the cross slide, and the knee, slide in dovetail guide ways. The dovetail guide ways are amply dimensioned to resist extreme machining loads. The guide ways are protected constantly from the ingress of swarf and coolant.
      • Milling head can be moved away from work position quickly with ease and parked on the side of the column.
      • Column mounded electrical cabinet.
      • Large tray on the base plate to collect chips and coolant.

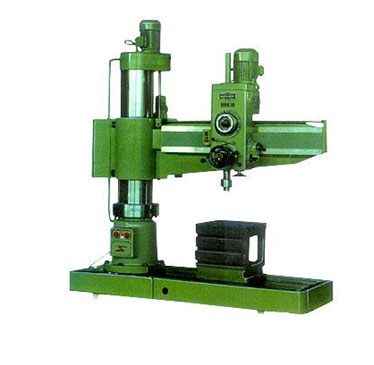

    BATLIBOI MAKE RADIAL DRILLING MACHINE

    Model BR-515

    Capacity:

    • Drilling in Steel (Tensile strength 600 N/mm2) - 50mm
    • Drilling in Cast Iron – 63mm
    • Rough Boring in Steel – 90mm
    • Rough Boring in Cast Iron – 100mm
    • Threading in Steel - M42 x 3

    Drill Head:

    • Spindle Nose – 5 MT
    • Maximum Spindle stroke – 400mm
    • Number of Spindle Speed - 16
    • Spindle Speed Range - 50 to 1600 RPM
    • Number of Power Feeds - 8
    • Power Feed Range: Standard 0.13 - 1.4 mm/rev

    Working Range:

    • Drilling Radius min / max - 555 / 1485 mm
    • Dist. from Column to Spindle Centre min/max - 398/1328 mm
    • Dist. from Spindle to Base min / max - 200 / 1300mm
    • Column Diameter – 315 mm
    • Vertical Traverse of Arm – 700 mm
    • Drilling Head Traverse – 930 mm
    • Swing of Arm: +180 deg
  • CNC Lathe Machines

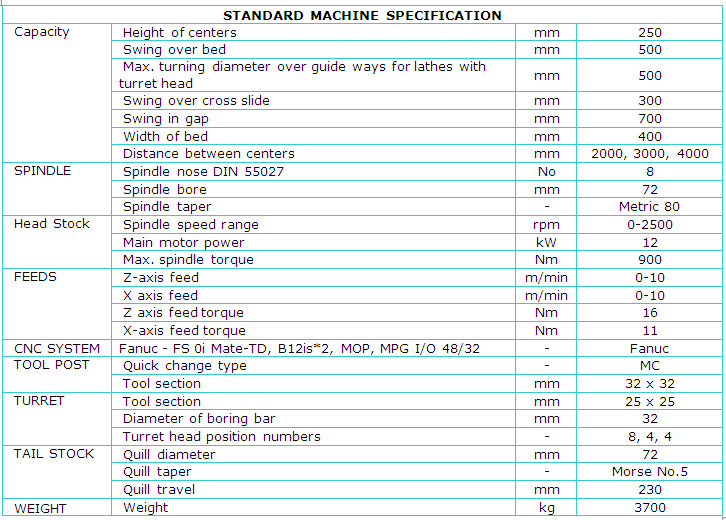

    ZMM Bulgaria make
    CNC Lathes with Fanuc Control
    (Between Centre - 2000 mm / 3000 mm / 4000 mm)



    STANDARD MACHINE SPECIFICATION

    ZMM Bulgaria make
    CNC Lathes with Fanuc Control
    (Between Centre 5000 mm)

    STANDARD MACHINE SPECIFICATION
  • Conventional Lathe Machines

    ZMM Bulgaria make - Variable Speed Heavy Dutty Lathe Distance between centers-5000


    STANDARD MACHINE SPECIFICATION

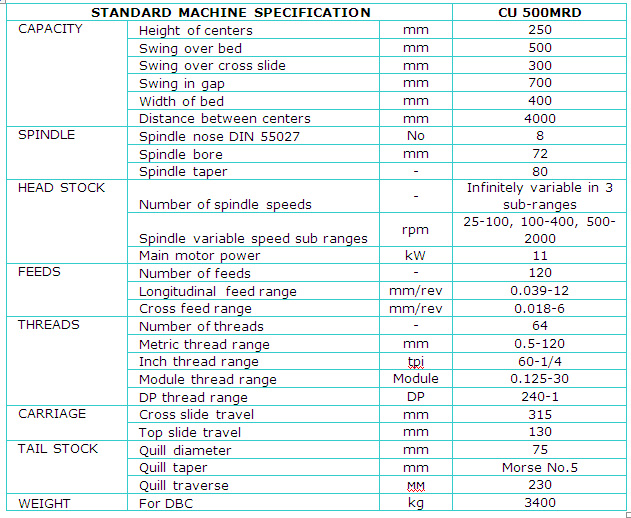

    ZMM Bulgaria make - Variable Speed Lathe (4000 mm)

    STANDARD MACHINE SPECIFICATION

    ZMM Bulgaria make – Universal Lathe (1500 mm)

    STANDARD MACHINE SPECIFICATION

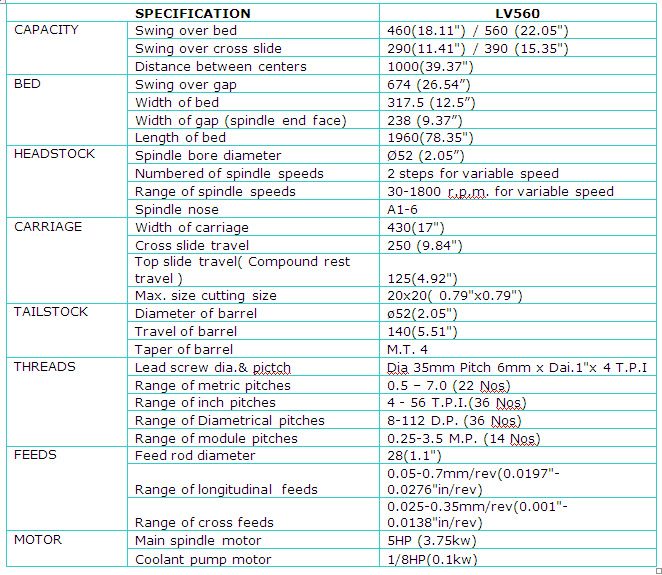

    High Speed Variable -Speed Lathes
    DENVER IND.CO.LTD-TAIWAN.

    STANDARD MACHINE SPECIFICATION
  • CNC Vertical Machining Center

    Model: "Agni"
    BMV45TC24
    with FANUC 0i MD CNC system

    • Traverse: X – 600, Y – 450, Z – 500
    • Feed Rate: 1 – 10,000
    • Spindle Power: 5.5 / 7.5 KW
    • Speed: 12000 RPM
    • Taper: BT40

    Model: "Sooraj"
    BMV65TC24
    with Fanuc 0i MD Control CNC system

    • Traverse: X – 1280, Y – 700, Z – 650
    • Feed Rate: 1 – 10,000
    • Spindle Power: 7.5 / 11 KW
    • Speed: 8000 RPM
    • Taper: BT50
  • Cylindrical Grinding Machine
    • German Make
    • Centre Height - 190mm
    • Max Diameter - 380mm
    • Distance between Centres - 3000 mm
