Welding and Cutting Automation Equipment

SIECO has Fully Automated TIG and Plasma Welding with Cold and Hot wire process, High end Orbital Welding, Fully Automated Sub Arc Welding, Pulse MIG / MAG Automatic Welding in addition to the Manual / Automatic TIG Welding facility.


The automation of the process is done in both vertical and horizontal position. The low-profile bead shape reduces post-weld operations, producing weld beads that are flawless in appearance.


PPlasma welding is also well suited for the fabrication of spools of pipes upstream of the installation site. It allows subassemblies to be prepared and welded in the factory from Tubes, Elbows, Flanges and other parts, which are then fitted together.


OOrbital welding provides high precision welding in process pipe lines. It results in increased production and excellent quality with uniform deposit of weld metal to comply with International Standards and Customer Specification in particular for Pharmaceutical, Biotechnology, Food Processing and Chemical Industries.


Welding processes: A wide range of welding processes are adopted in production and an automated machine welding precisely suiting to most of standards and practices.


  • Orbital welding
    ORBIMATIC 300CB (Made in Germany)

    Orbital welding power supplies of the ORBIMAT 300 CB include the tried and tested and classic operating concept from ORBIMATIC with entry of all parameters via a high quality function and numeric keypad. All values can be programmed directly and without a conversion factor.

    The ORBIMAT 300 CB includes the tried and tested ORBIMATIC automatic programming with programming help when entering the tube diameter, wall thickness, material and welding gas.

      Functions and Equipment:

    • DC welding.
    • Control option for cold wire feed.
    • Optimal visibility and operating conditions thanks to clearly laid-out 10.5" monitor.
    • Multilingual menu navigation via color display.
    • Capacity to store over 5,000 welding programs.
    • Welding data logging and printout of actual values.
    • A multicard reader enables data to be transferred easily to an external PC.
    • Memory can be extended and data exchanged using CompactFlash card (CF), SD, MMC, SM, Sony memory stick.
    • (Optional) PC-offline software with the capability to convert data protocols to PDF.
    • Extremely easy to service thanks to PSS (Pro Service System):
      • Simple functional test with no need to open the unit.
      • Easy to service and components can be replaced quickly thanks systematic component structure.
    • Power slope adjustment between the individual sectors.
    • Coolant water and welding gas are monitored.
    • Option to program up to 99 sectors.
    • VGA connection.
    • Integrated printer.
  • Fully automated sub arc welding with column booms & self aligned rotator

    Increase Productivity, Quality and Flexibility

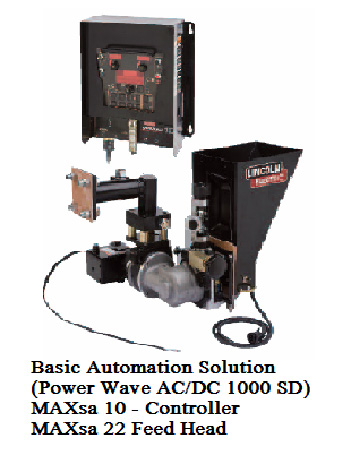

    The Power Wave AC/DC 1000 SD delivers Waveform Control Technology to submerged arc welding. Choose constant current or constant voltage operation and set variable frequency and amplitude. Software-driven AC, DC positive or DC negative output allows the user to control the deposition rate and penetration. The result over conventional power sources is increased weld speeds, consistently higher quality welds and improved efficiencies in a single or multi-arc environment.

    • 380 - 575 VAC, 50/60Hz Voltage Input – Offers the ability to be connected anywhere in the world.
    • Voltage Compensation and Reliable Input Voltage Connection – Provides consistent operation over ± 10% input voltage variation.
    • No Hardware Reconfiguration Required with Easy Polarity Switching – Eliminates downtime.
    • Easy to Parallel Machines or Run Multiple Arcs.
    • 3-Phase Voltage Input – Eliminates the imbalance associated with transformer-based AC welding machines.
    • 95% Power Factor Correction – Enables connection of multiple machines on the same plant infrastructure for lower installation costs.
    • Severe Duty – Can be stored outdoors. IP23 Rated.
    • ArcLink, Ethernet, and DeviceNet Communication – Offers remote process monitoring, control and troubleshooting.
    • True Energy – Measures, calculates and displays instantaneous energy in the weld for critical heat input calculations.
    • Production Monitoring 2 – Track equipment usage, store weld data and configure limits to assist in welding efficiency analysis.
    • Software Based Controls – Can be upgraded as new features become available.
    • iARC Digital Control - 90 times faster than the previous generation, delivering a responsive arc.
    • Each Unit is – Factory burn-in tested at maximum output for 2 hours to ensure quality and reliability.

    Processes

    DC+ Submerged Arc, DC- Submerged Arc, Balanced AC Submerged Arc, Variable AC Submerged Arc

  • Fully Automated TIG and Plasma Welding
    PI plasma 500

    The Plasma Welding Process is similar to Tig Welding Process. In Plasma Welding, the arc is sharply constricted by a cooled gas nozzle through which a flow of plasma gas is directed. The shielding gas flows through the outside gas nozzle, providing optimum gas-shielding to the weld-seam. The concentrated arc results in maximum energy focalization, leading to a deep-penetration effect in the work piece that can only be matched by a laser beam. The plasma arc is thereby an active part of the fusion process with an energy density that is up to ten times larger than the TIG arc. It forms a gas consisting of both positive charge carriers (ions) and negative ones (electrons). In order for plasma to form, very high temperatures of up to 25,000° C (45,000° F) are needed. Plasma welding is ideal process for applications where stringent quality demands are made of the weld-seam, for absolute freedom from porosity, perfect seam appearance and zero spatter.

    Pi 500 Plasma

    Pi 500 Plasma - a 3-phase inverter power source with power water-cooled burner designed specifically for plasma welding with a welding current range of m between 5-500A, and has all the options for configuring automatic process.

    Pi 500 Plasma welding provides high-quality sheet metal thickness of 10 mm stainless steel up to 8mm of carbon. The unit has 3 modes of momentum normal pulse, fast pulse and synergic pulse Synergy PLUS, and supports three plasma welding process: plasma-fusion, plasma-press, "keyhole". Also suitable for TIG welding.

      The advantages of using Pi 500 keyhole Plasma

    • Full penetration / High performance / Minimum spatter
    • Low power consumption of consumables
    • Low heat input and minimum strain
    • Always ready for a change of welding cycle
    • High speed welding - reducing post-weld treatment
    • Automation of production
    • Electronic control of gas flow and water flow in the torch.
    • Built-in gas-saver kit / Remote control kit / Diffusion-safe gas hose / Pilot arc – safe ignition
    Automated Plasma Welding Facility using 6M x 6M Column & Booms

    Miller Maxtar 700

    The Maxstar 700 is a powerful, compact power source capable of welding up to 1" material. High speed pulse control provides maximum productivity and weld quality while conserving energy compared to traditional welding machines.

    • Exceptionally smooth and precise arc for welding exotic materials.
    • High-Speed DC TIG Pulse Control — pulse frequency capable of pulsing 5000 pulses per second. Pulsing adds arc stability, reduces heat input and warpage and can increase travel speeds. Other parameters include peak amperage, peak time and background amperage.
    • Blue Lightning™ - High Frequency Arc Starter for TIG non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters. Easy to set up and increases productivity.
    • Meter Calibration allows meters to be calibrated for certification. 120 V auxiliary power receptacle for
    • cooling system or small tools.
    • Wind Tunnel Technology protects internal electrical components from airborne contaminates, extending the product life.
    • Auto-Postflow calculates the length of postflow time based on the amperage setting. This eliminates the need to independently set the postflow time for different amperages. This feature preserves your tungsten and prevents porosity.
    • Program memory features 9 independent program memories that maintain/save your parameters.
    • Industrial Applications:
      • Precision Metal Fabrication
      • Tube Mills
      • Pipe & Tube Fabrication
      • Tool and Die
      • Exotic Material Fabrication
      • Pressure Vessel Fabrication
    • Processes: TIG (GTAW), Pulsed TIG (GTAW-P) - 700: 3/8 in maximum

    WC 100B PLASMA WELDING CONSOLE

    Automatic/ Manual Operation, Pilot Arc

    Thermal Arc Plasma Welding Torch PWM – 6 A 500 Amps

    Usable with any of the Thermal Arc line of plasma welding torches, the WC 100B features reliable arc starting by means of a pilot arc. It offers advantages in low-current welding operations, and in repetitive, high-duty-cycle, automatic applications. The pilot arc can be used in either the interrupted or continuous mode. The latter provides greater arc stability along with instant arc starting at low currents or in high-duty-cycle, fast cycling welding.

    WC 100B features are: LED amperage/ voltage display; large, readable plasma and shield gas flowmeters; internal torch leads connections for increased safety; Hi / Lo pilot current switch to provide the best arc starting characteristics at various main arc current levels; plug-in enclosed relays; and auxiliary control receptacle for automatic or manual operation. You can complete your Thermal Arc plasma welding system with a plasma welding torch, Thermal Arc power supply or any DC constant current power supply, coolant source and supply of gases.

    Thermal Arc Plasma Welding Torch PWM – 6 A 500 Amps.

    Hot Wire Process:

    The hot wire process in the quality of GTAW (TIG) or Plasma (PAW) produces a high quality weld at a high deposition rate. The system uses higher wire feed speeds and it is electrically preheated so that the wire enters the weld pool without undesirable chilling of the pool. Preheat is created by applying an AC current to the wire prior to its entering the weld pool. Current is applied as the wire passes through a contact tip in the hot wire torch. Because the wire is preheated, the hot wire torch provides gas coverage for the wire. This gas coverage is additional to the gas shielding of the welding arc.

    For optimum results, the wire is fed into the weld pool at a steep angle, approximately 50° to 60° from the horizontal and 0.15" to 0.2" (4 to 5 mm) behind the tungsten electrode. Wire stick out from the torch would normally be set at about ¾" to 1" (19 to 25 mm). This distance combines optimum heating of the wire and wire position control. Application: Fabrication of Pressure Vessels, thicker material, multi-pass welds in ¼" (6 mm), diameters of 3" (75 mm)

    Hot wire TIG produces consistent quality welds at high production rates. The process pre heats the wire prior to transfer in an automated TIG process, virtually eliminating porosity by driving off most of the volatile contamination from the surface of the wire. By preheating the wire it also allows for faster deposition rates up to 14 lbs. per hour. The process is spatter free and maximizes control of dilution, bead width and surface profile.

    The system is integrated to a fully mechanized system with PC based control and manipulation of circumferential or linear motion. Development of the process head is usually part specific.

    Industry applications

    • Nuclear
    • Pipe/tank fabrication to code spec or pressure vessel
    • Shipbuilding
    • Power generation
    • Corrosion resistant and sour gas / cracking tower applications
  • Pulse MIG / MAG Automatic Welding

    Variety and precision: these are the crucial conditions for successful pulsed arc welding. Whatever the capacity class.

    QINEO PULSE 600 Amps offers five different welding processes for a large variety of applications. Every QINEO PULSE is equipped with a synergy mode and two fine adjustments. The synergic characteristic curves can therefore be perfectly adapted to external factors. In addition, every QINEO PULSE can be equipped with different operating modules – from ECO for manual welding up to the PREMIUM version for automated processes. For all pulsed arc welding requirements: QINEO PULSE

    Cloos QINEO PULSE 600 amps

      Advantages

    • High capacity and variety: Three capacity classes with five different welding processes
    • Precision through technology: Two fine adjustments for the perfect arc
    • Arc length: Fine adjustment of the arc length
    • Arc dynamic: Fine adjustment of the arc dynamics
    • Top quality: Optimum ignition and welding characteristics due to intelligent operating module
    • Flexibility: Operating from welding power source, wire drive or remote control unit as required
  • Manual / Automatic TIG Welding

    Maxstar 350 and 700 are designed for heavy industrial use.The Maxstar 350 can weld up to 5/8-inch steel, while the 700 can weld up to 1-inch steel.

      DC TIG features:

    • Exceptionally smooth and precise arc for welding exotic materials
    • High-speed DC TIG Pulse control capable of pulsing 5000 pulses per second for arc stability, reduced heat input increased travel speeds

      Both models feature:

    • Lift-Arc technology
    • High frequency arc starting
    • Program memory that can store up to 9 program memories to store parameters.
    • Auto-Line power management technology.
    • Fan-On-Demand
    • Optional water-cooled Complete Package for 350 model includes Runner cart, Coolmate 3.5 cooler, Weldcraft torch and foot pedal or fingertip control.

    250 A, DC TIG machine, 3 x 400 V with high frequency ignition and built-in pulse function.

      Facilities / Advantages:

    • Tack welding function - Faster fusion without slopes during start and stop.
    • Traditional pulse - Allows setting of welder's own pulse pause times.
    • Quick pulse - Allows setting of pulse frequency.
    • Synergy PLUS - Automatic setting of dynamic synergy pulse parameters.
    • Programme setting - Setting of 10 programmes for each of the welding processes MMA – TIG DC
    • Idle/extra current - Welding current can be lowered or increased compared to the setting by pressing the torch trigger during welding. Increased current gives faster and better fusion of tack-weldings.
    • Use with generator - The machine is prepared for use with generator
