Mixing / Blending Vessel / High Speed Disperser

MMixers are used in industries like Pharmaceutical, Ayurvedic Medicine, Liquid Mixing, Powder Mixing etc. Multi-shaft mixers are used in Cosmetics & Toiletries, Pharmaceuticals, Food Processing, Chemical Process etc. High Speed Dispersers are most often used in industries like Chemical, Paint & Coating, Ink etc. Mixing / Blending Vessels and High Speed Dispersers can be designed and supplied as per Process / Clients requirement.

Mixer / Multi-shaft Mixers are vessels provided with heating and cooling system, temperature control system, electrical control panel etc. Multi-shaft mixers comprise two or more independently driven agitators, low-speed anchor, one or two high-shear devices, and a high speed blade. Dual Shaft is designed for general mixing and dispersion application. It comprises of two-wing anchor agitator and a high speed disperser. Triple Shaft design consists of very high speed disperser which helps the mixer efficiently.

High Speed Dispersers consist of driven vertical shaft and high shear disk type blade which creates a radial flow pattern in the mixing vessel, where the blade surface mechanically reduces the solid mass and at the same time disperse them in a liquid used as carrier fluid. High Speed Dispersers are ideal for high viscous application.

Sailent Features:

• Designed and Fabricated as per IS:2825, PD 5500, ASME sec VIII Div 1 & 2 Codes & Standard
• Materials of Construction: SS304, SS304L, SS316 , SS316L, SS904L, Monel, Inconel, Hastalloy etc
• Mixing / Blending Vessels and High Speed dispersers are in general identical to Reaction Vessels except for the type of agitators / dispersers
• Other construction features are identical to Reaction Vessels

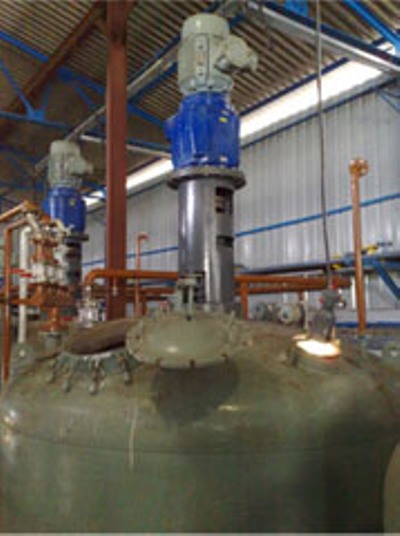

• Mixing blending vessel 1

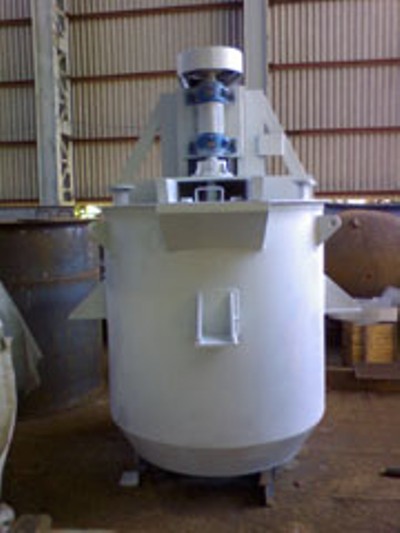

• Mixing blending vessel 2

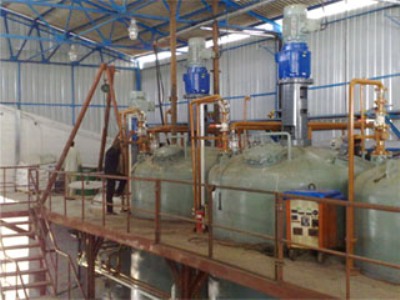

• Mixing blending vessel 3



• Mixing blending vessel 4
